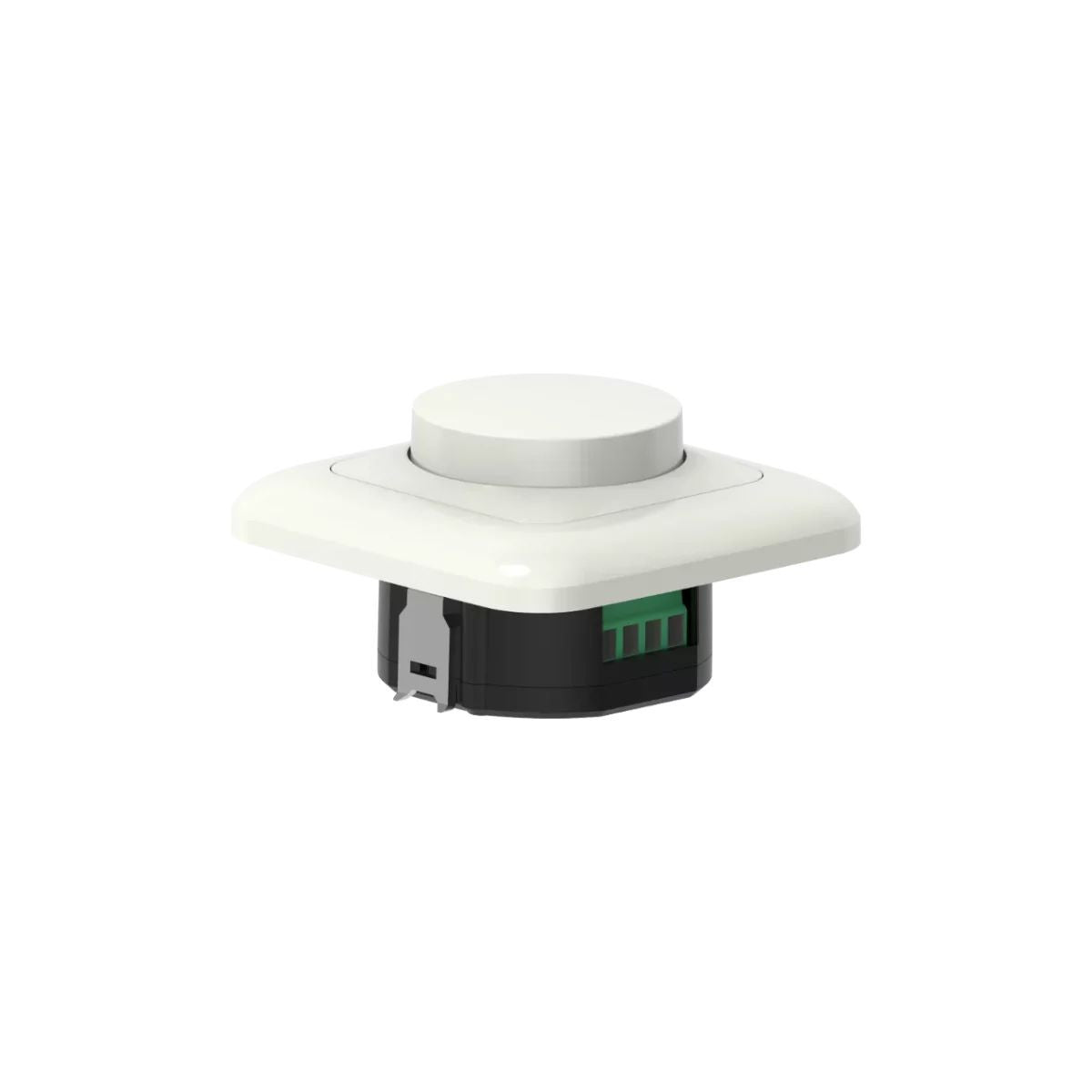

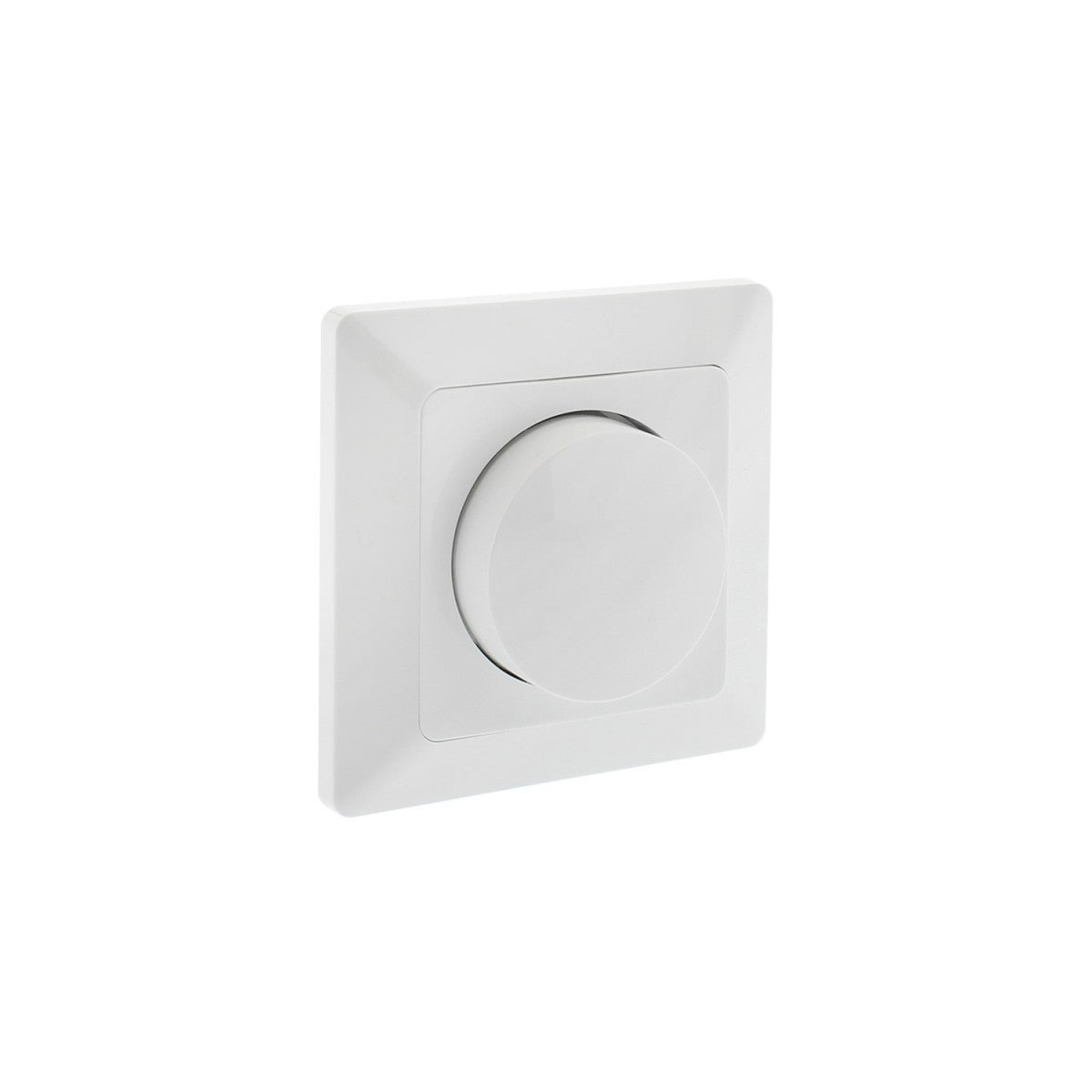

LED Dimmer Switch 220V TRIAC Trailing Edge 150W

The TRIAC LED Dimmer Switch 220V 150W is the ideal solution for controlling light intensity in dimmable LED installations operating on mains voltage. With a simple rotary movement, adjust the light progressively from maximum level to complete shutdown — adapting each room to the right atmosphere and moment.

Complete control with integrated PUSH function

It incorporates an integrated PUSH function that allows you to turn the light fixture on and off with a simple push of the button, combining control and convenience in a single compact mechanism. No more separate switches: everything in one control point.

TRIAC Trailing Edge Technology for LED

Based on TRIAC trailing edge dimming technology, specifically designed for LED lighting. It ensures smooth, flicker-free dimming, compatible with 220V LED strips, dimmable LED bulbs, and downlights with dimmable drivers. It does not dim direct current. It is essential that the connected light fixtures are compatible with this type of dimming.

Versatile and universal installation

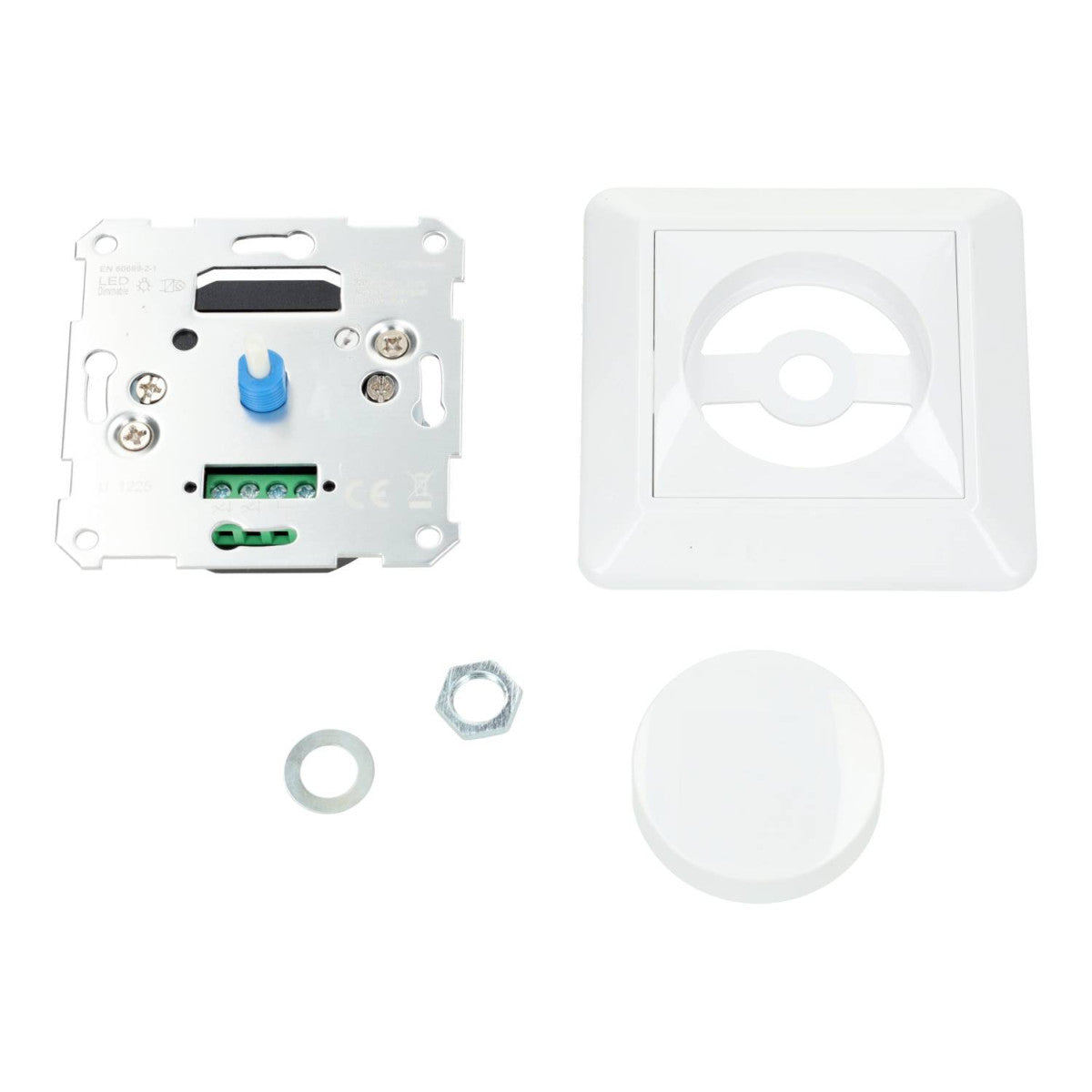

It can be installed as a single control point or combined with a mechanical two-way switch, allowing it to be turned on and off from two points. Compatible with universal mechanism boxes. To make the electrical connection, simply remove the rotary knob to access the connection terminals.

Functional design for indoor use

Made of white polycarbonate, it discretely integrates into any residential or commercial environment. IP20 protection rating, suitable for indoor installations.

Technical specifications

• Maximum power: 150W
• Input voltage: AC 220–240V
• Frequency: 50 Hz
• Dimming type: TRIAC Trailing Edge
• PUSH function: Yes (on/off by touch)
• Material: Polycarbonate
• Colour: White
• Protection rating: IP20
• Use: Indoor
• Certifications: CE, RoHS
• Warranty: 3 Years

Compatible with all 220V dimmable bulbs and strips and with dimmable drivers available in the related products section.
