Emergency Kit for LED Luminaires up to 200W | Self-test | LiFePO4 Battery | IP20

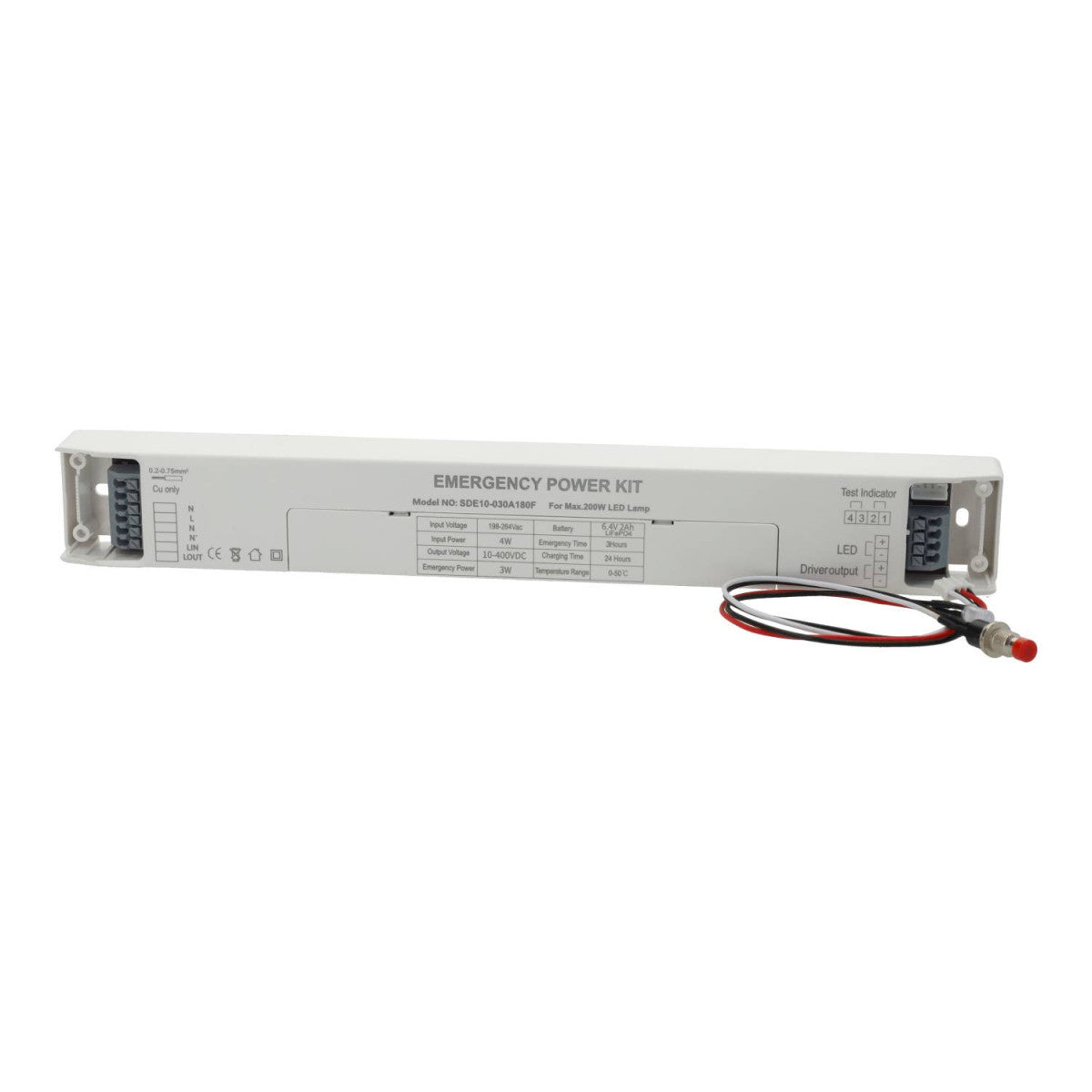

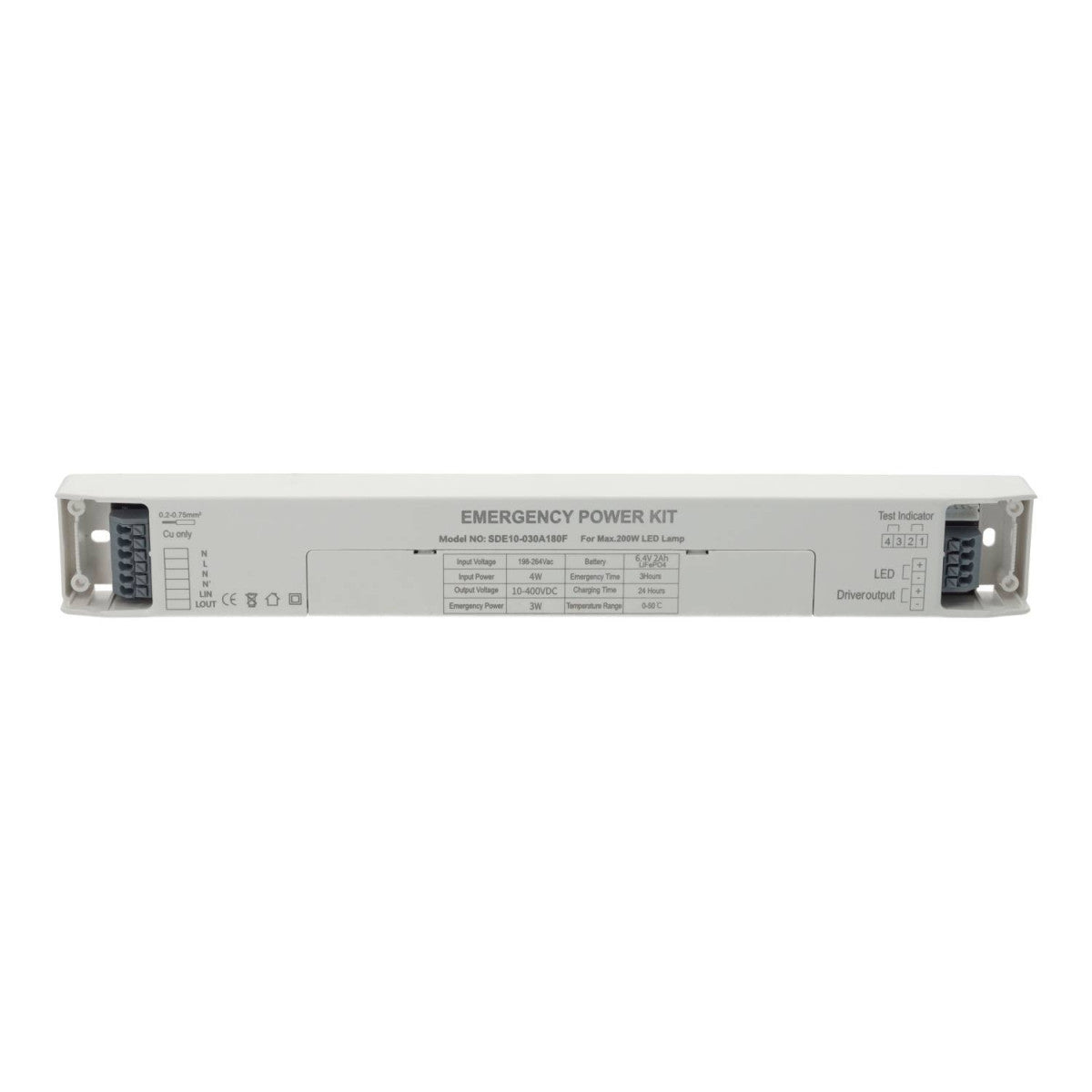

KEL200 LED Emergency Kit — Convert Any LED Luminaire into an Emergency Luminaire

Imagine being able to transform any existing LED luminaire — a panel, an industrial high bay, a downlight, or a floodlight — into a fully functional emergency luminaire, without replacing the equipment. The KEL200 Emergency Kit makes this possible: it is installed directly into the existing fixture and guarantees up to 180 minutes of safety lighting in case of a power failure.

Compact, smart, and with an integrated and replaceable LiFePO4 battery, it is the most practical and economical solution to meet safety requirements in indoor spaces.

✅ Technical Specifications

• Reference: KEL200
• Maximum compatible power: up to 200W
• Power in emergency mode: 3W
• Autonomy: up to 180 minutes
• Battery: LiFePO4 6.4V 2Ah — integrated and replaceable
• Input voltage: 85–265V AC / 198–264V AC
• Output voltage: 10–400V DC
• Frequency: 50/60 Hz

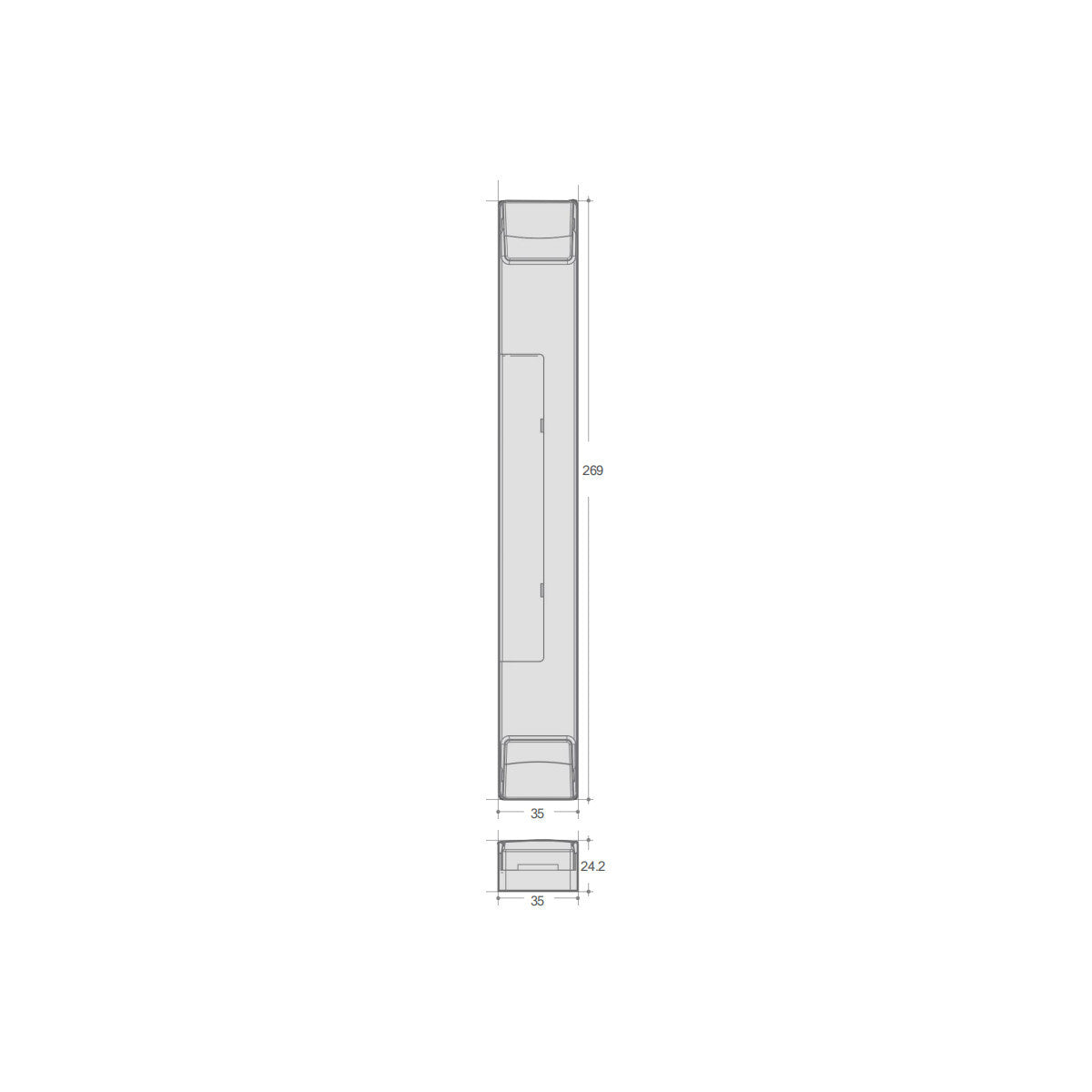

• Dimensions: 269 × 35 × 24.2 mm
• Material: ABS
• Protection rating: IP20 — Indoor use
• Operating temperature: 0°C to +50°C
• Certifications: CE, RoHS
• Warranty: 3 Years

🔍 Smart Functions

• Periodic self-test: the kit automatically checks its own operation, without manual intervention
• TEST button: allows manual checking of operation and connection at any time
• Status indicator LED: instant visual monitoring of the kit's status

⚡ Compatibility

• LED luminaires with external driver or internal driver
• LED Panels · Industrial high bays · Floodlights · Downlights · LED Tubes · Any LED luminaire up to 200W
• Simple connection with quick connectors at input and output

⚠️ Important Notice

Only compatible with mechanical switches. Not compatible with touch or electronic switches.

🔋 Replaceable Battery

The LiFePO4 6.4V 2Ah battery is integrated into the kit, saving space and facilitating installation. At the end of its useful life, it can be easily replaced without needing to replace the entire kit.

Complies with the European Low Voltage and Electromagnetic Compatibility Directives. CE and RoHS certified. For installation details, please refer to the included instruction manual.
